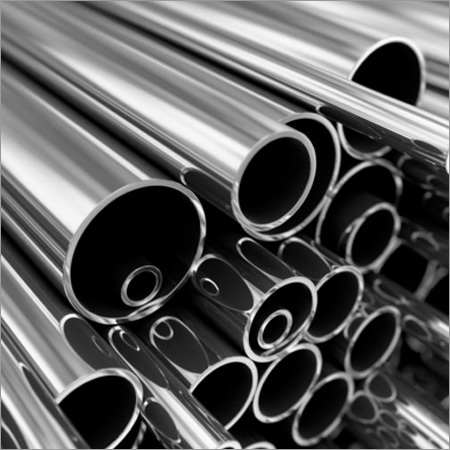

Precision Steel Tubes

Precision Steel Tubes
Precision Steel Tubes
Product Code : PST 24
Brand Name : JSL ISPAT PVT. LTD
Product Description

 Precision Steel Tubes:-



Precision Tubes are extensively used in automobiles, power & industrial boilers, transformers, superheaters, economisers, heat exchangers, bicycles, automobiles, railway electrification, and furniture applications.




JSL Ispat Advantage JSL Ispat

Precision ERW tubes offer many advantages such as close tolerances on diameter & thicknesses, exceptional concentricity and a smooth finish, both inside & outside of the tubes.These features enable designers to obtain uniformity of flow under controlled temperature, pressure conditions, while fabricators can exercise greater control over close bending and tube alignment in butt welding




JSL Ispat Application JSL Ispat
+ Chairs & Tubes
+ Beds & Sofas
+ Computer Table
+ Curtain Rod
+ Umbrella Rod

JSL Ispat Specification JSL Ispat

Standard Size
Outside Diameter mm Wall Thickness mm
12.7 1.0, 1.2, 1.6, 2.0
13.5 1.0,1.2
16 1.0,1.2
17.2 1.0,1.2,1.6
19 1.0,1.2,1.6
20 1.0,1.2,1.6
21.3 1.0,1.2,1.6
22 1.0,1.2,1.6,2.0
25.4 1.0,1.2,1.6,2.0
26.9 1.0,1.2,1.6,2.0
28.5 1.0,1.2,1.6,2.0
30 1.0,1.2,1.6,2.0
31.8 1.0,1.2,1.6,2.0
33.7 1.0,1.2,1.6,2.0
38 1.0,1.2,1.6,2.0
42.4 1.0,1.2,1.6,2.0
44.5 1.0,1.2,1.6,2.0
48.3 1.0,1.2,1.6,2.0
51 1.0,1.2,1.6,2.0

Tolerances
a) Outside Diameter Maximum Deviation Upto & including 21.3mm #9; Above 21.3mm ± 0.2mm
± 0.3mm
b) Wall Thickness (for all sizes) + not limited - 8%
c) Weight
i) For single tube and for quantities 10%
ii) Less than 150m of one size -8%
iii) For quantities of 150m and over of one size ± 4 %
d) Lengths
i) Random Length 4 to 7 Mtr.
ii) Exact Length upto 3m long + 6mm - 0mm
iii) Over 3m long + 10mm - 0mm
